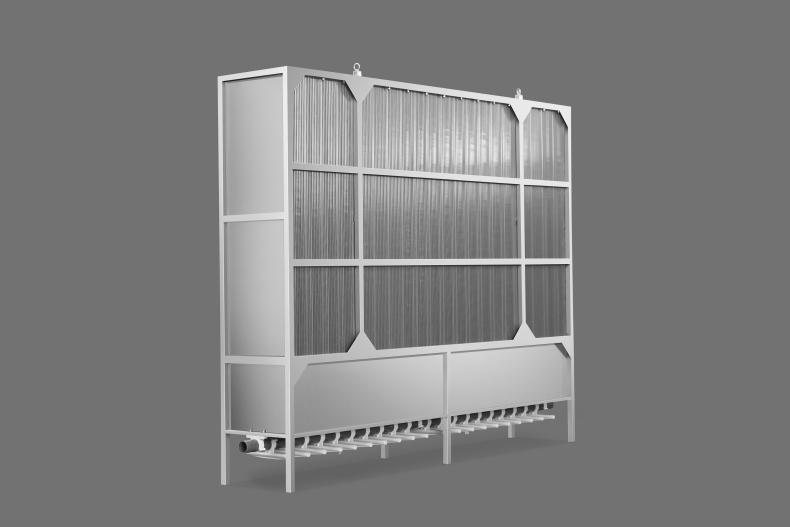

1. Perl immersion flat membrane uses PVDF as raw material, which has good chemical stability, pollution resistance and mechanical strength, and has been widely used in today’s water treatment industry;
2. Peier flat film is divided into different models: 0.1m²/0.25m²/0.8m²/1.0m²/1.5m²
MBR flat membrane element parameter table
| Type | MF-F-0.8-PVDF | MF-F-1.0-PVDF | MF-F-1.5-PVDF | |
| Effective area(m²) | 0.8 | 1.0 | 1.5 | |
| Size(L×W×H) | 1030×490×7.5 | 1190×518×7.5 | 1780×490×7.5 | |
| Water production (L/tablet/day) | 320-480 | 400-600 | 600-900 | |
| Material composition | Membrane material | PVDF+PET | ||
| Membrane pore size (μ m) | 0.1 | |||
| Outer frame | ABS | |||
| Aeration rate (L / min. piece) | 8 | 10 | 12 | |
| Aeration rate (m³/min) | 3.2 | 3.6 | 5.8 | |
| Effluent turbidity (NTU) | ≤1 | |||
| SS (mg/L) of effluent | ≤5 | |||
Note:
1. The water production in the above table refers to the test value of clean water. The initial filtration capacity of the membrane with a suction pressure of -10Kpa and a water temperature of 25°C; for different water quality, the water production will have a big difference;
2. The recommended design flux of municipal sewage or similar municipal sewage is 400~500L/㎡.d. For the design flux of industrial sewage, please consult relevant technical personnel of Peier;
3. Peier’s experimental models are MF-F-0.1-PVDF (effective area 0.1㎡), MF-F-0.25-PVDF (effective area 0.25㎡), please consult relevant technical personnel for details.
