Technical characteristics

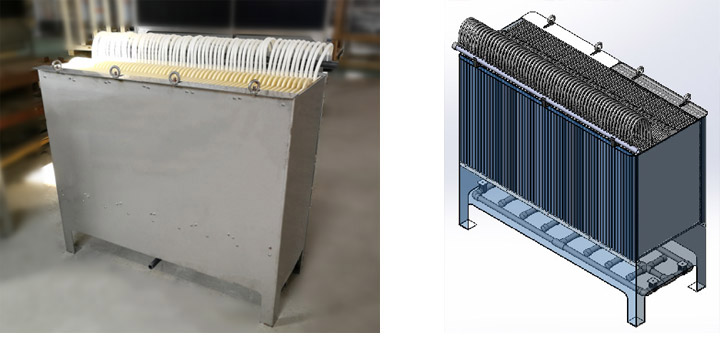

With 0.25m² flat membrane as the core element, the effective use of the filtration area is greatly increased
The whole stainless steel plate is folded and formed, and the integral structure enhances the overall rigidity of the module.
A new type of “perforated” aeration system, balanced aeration effectively scouring the surface of the membrane skin, extending the membrane cleaning cycle
Application: verification experiment of small and medium scale test of MBR sewage treatment project; rural residential, tourist area, independent villa, and various scattered and small water sewage treatment projects such as restaurants, car washes, washing shops, etc.

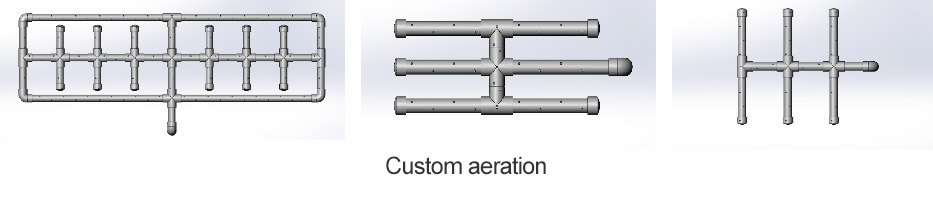

Custom aeration
The main purpose of aeration is to wash the membrane surface and prevent the gel layer on the membrane surface from thickening, so the uniformity and intensity of aeration directly affect the membrane cleaning cycle. Different forms of aeration developed for small components.
Perforated aeration system
Suitable for small components with different structures
Evenly flush each membrane element
| Typical component specifications | ||||
| model | PE25-10 | PE25-20 | PE25-30 | PE25-60 |
| Effective area（m2） | 2.5 | 5 | 7.5 | 15 |
| Dimensions（mm） | 357×153×750 | 357×303×750 | 357×453×750 | 357×901×750 |
| Number of membrane elements (pieces) | 10 | 20 | 30 | 60 |
| Water production (m³/d) | 1 | 2 | 3 | 6 |
| Bracket material | SUS304 | |||
| Aeration pipe material | UPVC / SUS304 | |||
| Water collecting pipe material | UPVC / ABS | |||
